Videon
An Encoder + Computer, together at last
Videon is a company that is constantly improving and streamlining its product line to live up to the demands of the professional video streaming market, a market known for its demand for fast, low-latency workflows, precise control over multiple streams, and custom-built features.
Modular Feature Sets
As a leader in edge computing for video, Videon transforms live video technology by offering users modular access to a comprehensive set of features for processing video streams. This allows you to start with a simple setup and scale up as needed, all within a compact encoding device. The feature sets, provided through Videon's LiveEdge platform, are available as software components; some of them come with a certain model, and others are available as subscription add-ons. The encoding hardware itself can either be bought outright or subscribed to, offering flexibility to meet various needs.
Videon products support thousands of hours of live streaming every day across the world. They are widely used in sports broadcasting, news, emergency services, and various other live video use cases.
The Encoders
EZ Encoder
EZ Encoder is a standard-performance video encoder with one HDMI and one 3G SDI connectors on board to ingest single channel HDMI or 3G SDI video. The number of streaming outputs and profiles defines three different perpetual versions, also called Purchase models. The Purchase models can be upgraded to a higher EZ Encoder version and can also be made accessible to more LiveEdge feature sets. The Subscription model that contains the EZ Encoder hardware is called LiveEdge Node.
- EZ Encoder - Single Channel Output
- EZ Encoder - Multi Channel Output
- EZ Encoder - Multi Channel Output + MBR
- LiveEdge Node
EZ Encoder - Single Channel Output
Contains the basic feature set:
• Encode - Single Channel HDMI or SDI Input/Single Stream Output (1 x RTMP/SRT/RTSP - MPEG-2 TS Unicast x2 or Multicast x1), Single Profile.
• EdgeCaster device with perpetual encoding license for H.264, HEVC, AAC-LC, input resolution up to 4Kp30 with multi-channel audio, encodes up to 4Kp30, Closed Captioning.
• Static graphical overlay.
EZ Encoder - Multi Channel Output
Contains the basic feature set + Multiple Stream Output
• Basic feature set
• Stream Output (3 x RTMP/SRT/RTSP - MPEG-2 TS Unicast x2 or Multicast x1)
EZ Encoder - Multi Channel Output + MBR
Contains the basic feature set + Multiple Stream Output + Multiple Profiles
•
Basic feature set
•
Stream Output (3 x RTMP/SRT/RTSP - MPEG-2 TS Unicast x2 or Multicast x1)
• Multiple Profiles: Multi-Bit-Rate encoding (MBR) ladder up to a total of 4Kp30 - HLS, DASH, Low Latency Chunked Transfer Encoding (CMAF), OTT Origin Server (HTTP Pull), OTT HTTP Push with dual posting.
LiveEdge Node
This is a Subscription model that contains the basic feature set + specific LiveEdge modules.
•
Basic feature set
•
LiveEdge Cloud Control (included in vCare support plan)
• LiveEdge Run/Compute
• Access to subscribe to other LiveEdge add-ons
EZ Max Encoder
The EZ Max encoderis a high-performance video encoder has one HDMI and two 12G SDI connectors on board. The SDI connectors can function as 2x SDI input or as 1x SDI input with a loop out on the input. Each input enables the simultaneous transmission of multiple video streams at varying bit rates and resolutions, including up to UHD 4K60, using the H.265/HEVC codec.
Features EZ Max Encoder
- Encode - HDMI + SDI, SDI w/ loop, or 2x SDI Input - Each Input capable of Multiple Stream
- Output (3 x RTMP/SRT/RTSP - MPEG-2 TS Unicast x2 or Multicast x1), Multiple Profiles.
- EZ Max device with perpetual encoding license for H.264, HEVC, AAC-LC, input resolution up to 4Kp60 with multi-channel audio, encodes up to 2x 4Kp60
- Closed Captioning.
- Static graphical overlay.
- Multi-Bit-Rate encoding (MBR) ladder up to a total of 4Kp60 - HLS, DASH, Low Latency Chunked Transfer Encoding
- OTT Origin Server (for monitoring)
- OTT HTTP Push with dual posting
LiveEdge Max (1/2 inputs)
LiveEdge Max is the Subscription model of EZ Max Encoder. It contains all the features described above plus the following extra LiveEdge modules:
•
LiveEdge Cloud Control (included in vCare support plan)
• LiveEdge Run/Compute
• Access to subscribe to other LiveEdge add-ons

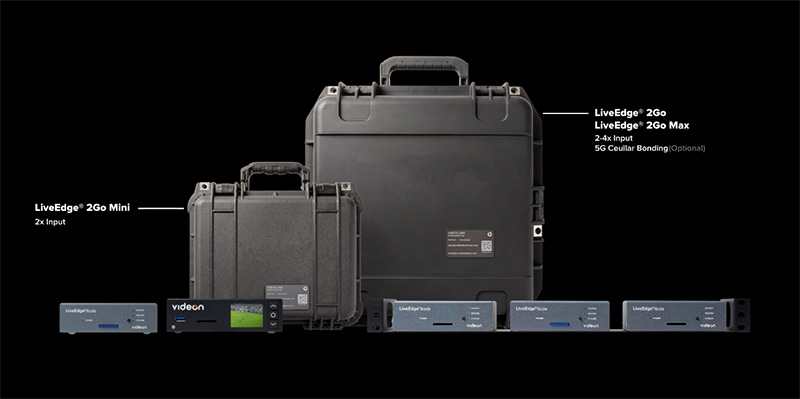

2Go Series

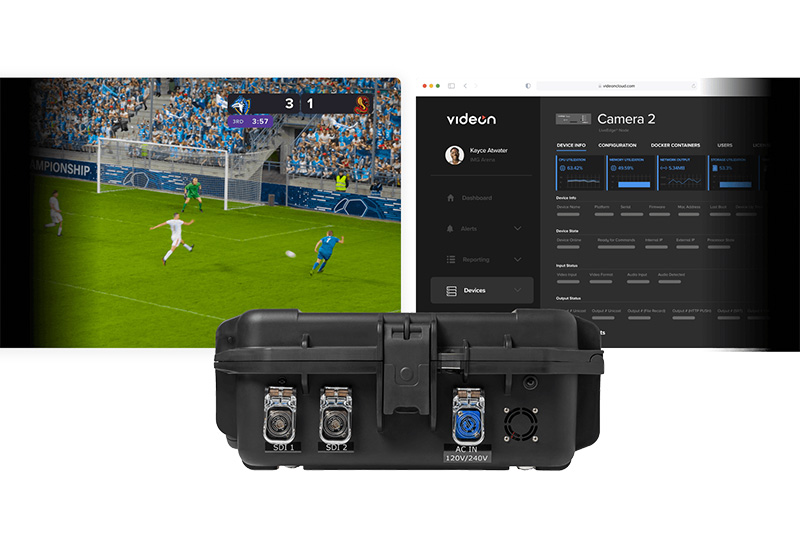

2Go is a portable version containing one or two Videon encoders housed in a weatherproof, dustproof, and crush-proof case, making it highly durable and easy to transport. It's designed to be carried to various locations, fitting the needs of live event producers who require robust and reliable on-site equipment.
The 2Go series are available as Purchase and Subscription models.
Rack mounted encoders
A horizontal Rack Mount Tray (19") (1RU) (5.95" deep) can be used for direct mounting of up to 3 Videon EZ Encoders or 2 Max Encoder devices. You can purchase a rack as a separate Purchase product and create your own heat-optimized rack encoder version. Alternatively, LiveEdge Rack (3 inputs) is available as a subscription model.
LiveEdge: The Revolutionary Compute Platform
What is LiveEdge?
LiveEdge is Videon's advanced compute platform, designed to enhance live video streaming capabilities by integrating specialized feature sets directly with Videon's encoder hardware. These feature sets are available as optional LiveEdge add-on subscriptions, allowing users to upgrade their video encoders based on specific needs and budget. This approach transforms the encoder from a single-function device into a versatile, multi-purpose tool. Below, you can explore more about the various feature sets available through LiveEdge add-ons, each offering unique functionalities to enrich your video streaming experience.
In addition to the add-ons offered by Videon, LiveEdge also includes a developer's kit that allows you to create your own feature sets, even with little to no coding experience. Hence, LiveEdge offers a wide range of uses that are constantly growing. It's versatile for various needs like Video Assistant Referee (VAR) functions, remote camera control, and encoder replacements, among others. Its adaptability makes it suitable for multiple applications, streamlining operations in diverse fields.
Revolutionizing live video streaming
The technology behind LiveEdge is what makes Videon encoders truly revolutionary. Known as edge technology, LiveEdge processes video data directly at the source, where it is captured, rather than depending solely on cloud processing. This method significantly reduces latency, lowers costs, and enhances the efficiency and reliability of live video streaming. By combining the advantages of edge computing with cloud-based management, LiveEdge provides a robust foundation for hybrid:cloud architectures, allowing cloud workflows to become more intelligent, flexible, efficient, and transformative.
The LiveEdge Containers
Videon offers the following LiveEdge containers or suites. Some containers already come with certain encoder model, others are offered as subscription add-ons. The subscription price is the price per input. So, if your hardware encoder model has multiple inputs, you can decide how many inputs you want to have a LiveEdge add-on subscription for. Videon is rolling out new updates every 6 to 8 weeks, so your devices keeps improving and expanding its capabilities. It's like having a tool that grows with you and your needs, always adding something new to explore and utilize in your work.
Activate LiveEdge - includes LiveEdge Run/Compute
The Activate LiveEdge subscription contains the LiveEdge Run/Compute suite and is for Purchase models to makes the encoder accessible to other LiveEdge subscriptions. It is included in all Subscription models.
LiveEdge Compute provides experimenters and developers the power to build, PoC, and deploy new features, and functionality, using plug-and-play Docker containers.
LiveEdge Cloud Control
LiveEdge Cloud Control enables you to orchestrate a fleet of devices remotely from anywhere in the world, while monitoring their health and receiving real-time alerts. This suite is included in VCare (Videon's support plan) and all Subscription models.
LiveEdge Stream
LiveEdge Stream provides the latest live low latency video streaming functions, multiple outputs (SRT/RTMP/Zixi/WHIP) and multiple profiles (HLS/DASH/CMAF).
It is perpetually included in some Purchase models or as an upgrade to a higher Purchase model.
LiveEdge Ads
LiveEdge Ads leverages SCTE-35 to insert ad markers and drive monetization. The insertion can be triggered through REST API or SCTE-104 ingest.
LiveEdge Data
LiveEdge Data enables SMPTE-336-based KLV functionality for multi-camera time sync and user defined metadata for personalization.
LiveEdge Graphix
LiveEdge Graphix adds value to live video, ingesting metadata and enabling visualization of HTML5-based metadata onscreen.
Prices
Download here the price list of Videon products.
Where to buy?
- Click here to find Videon resellers.
- If you can't find a reseller in your country please send an email to info@mediamachine.nl
About Videon
Videon has a long history delivering cutting-edge video technologies in partnership with industry leaders like Qualcomm, Intel, and Samsung. They have played a critical role in innovation around DVD, set-top-boxes, and inflight entertainment. Today, they proudly introduce Videon’s on-premise Video Compute Platform.
What started as a single appliance has now become a fully-integrated video compute platform. Delivered as a single unified hardware and software stack, along with a complete set of tools, Videon's video computer platform allows customers, partners, system integrators, and developers to build ultra-reliable, low cost, and highly customizable video-centric solutions.
